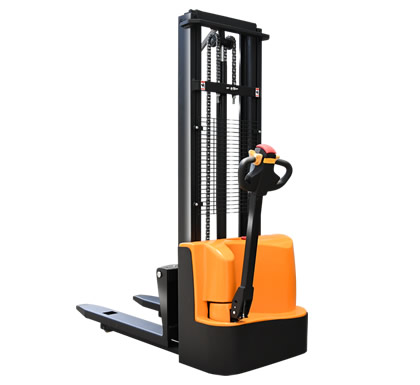

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

Name: Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg
Brand: EFORK
Price: 1 USD

Brand Name : EFORK

Model Number : CDD10C/CDD15C

Certification : CE/CAS

Place of Origin : China

MOQ : 1

Price : us dollar 2749-3349 USD

Payment Terms : T/T

Delivery Time : 10-15

Power : electric

Manoeuvre manner : stand-on

Rated loading capacity : 1000kg/1500kg

Wheel material : PU

Max. Lifting height : 1600-4500mm

Battery capacity : 2x12/80V/Ah(lead-acid)

Drive control mode : DC

Min.turning radius : 1380mm

Overall length : 1785mm

Overall width : 800mm

Ground clearance : 15.3mm

Contact Now

Walkie Electric Pallet Stacker Pallet Lifter Material Handling Equipment

Product discription

walkie type electric pallet stacker
characteristic	1.1	model number		CDD10C-30	CDD15C-30
	1.2	power		electric	electric
	1.3	operation type		walkie	walkie
	1.4	rated capacity	Q(Kg)	1000	1500
	1.5	load center	C(mm)	500	500
	1.6	bear distance	X(mm)	720	720
	1.7	wheelbase	Y(mm)	1197	1197
weight	2.1	weight including battery	kg	566	656
	2.2	axle load at full load,drive end/load end	kg	732/1344	764/1392
	2.3	axle load at no load,drive end/load end	kg	411/155	477/179
wheel	3.1	wheel type front/rear		PU/PU	PU/PU
	3.2	front wheel	∅×w(mm)	Φ80x70	Φ80x70
	3.3	rear wheel	∅×w(mm)	Φ210x70	Φ210x70
	3.4	wheeltread,front wheel	b10(mm)	515.5	515.5
	3.5	wheeltread,rear wheel	b11(mm)	520	520
dimension	4.1	mast height closed	h1(mm)	2075	2075
	4.2	lifting height	h3(mm)	3000	3000
	4.3	max. mast height in operation	h4(mm)	3537	3537
	4.4	fork height-mast closed	h13(mm)	85	85
	4.5	overall length	l2(mm)	1785	1785
	4.6	overall width	b1(mm)	800	800
	4.7	fork dimension	s/e/l(mm)	65/165/1150	65/165/1150
	4.8	fork adjustment(outside distance)	b5(mm)	680-337	680-337
	4.9	ground clearance	m2(mm)	15.3	15.3
	4.10	stack aisle width,pallet1000×1200	Ast(mm)	2155	2155
	4.11	min.turning radius	Wa(mm)	1380	1380
performance	5.1	travel speed (without/twith/ load)	km/h	6/5	4/3.5
	5.2	lifting speed (without/twith/ load)	m/s	0.101/0.095	0.101/0.092
	5.3	lowering speed (without/twith/ load)	m/s	0.096/0.112	0.096/0.115
	5.4	max. gradeability(without/twith/ load)	％	6/5	6/4.5
	5.5	brake		electromagnetic	electromagnetic
motor	6.1	drive motor power	kw	0.75	0.75
	6.2	lift motor power	kw	2.2	2.2
	6.3	battery type		lesd-acid	lesd-acid
	6.4	battery voltage/capacitance	V/Ah	2x12/80	2x12/80
	6.5	charger	V/A	24V/10A	24V/10A
others	7.1	drive control mode		DC	DC

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

1. Built-in high-energy sealed battery, Long-term use without maintenance, you don't need to add water during the period of life.

2. The forklift has many advantages, like compact size, easy to display, and saving working space. In particular, it can successfully go through even in a small channel.

3. Bias control can greatly improve the working vision; also can avoid collision between operators and the car in the process of driving

4. Long handle operation, greatly reduces the operating force make the operation more portable.

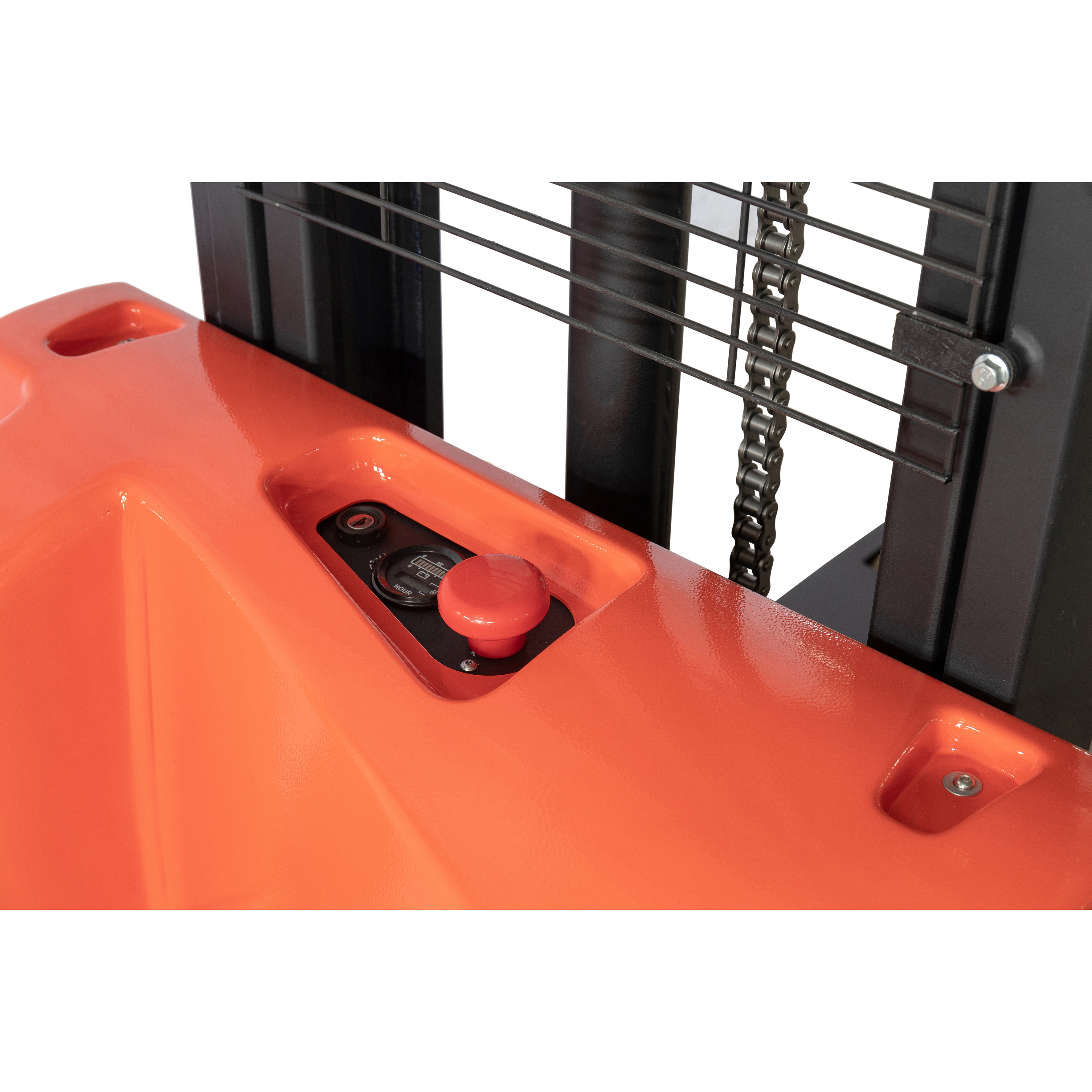

5. We consider emergency power switch as a standard configuration Just press the emergency stop button to cut off all the power in case of an emergency, the car can stop immediately.

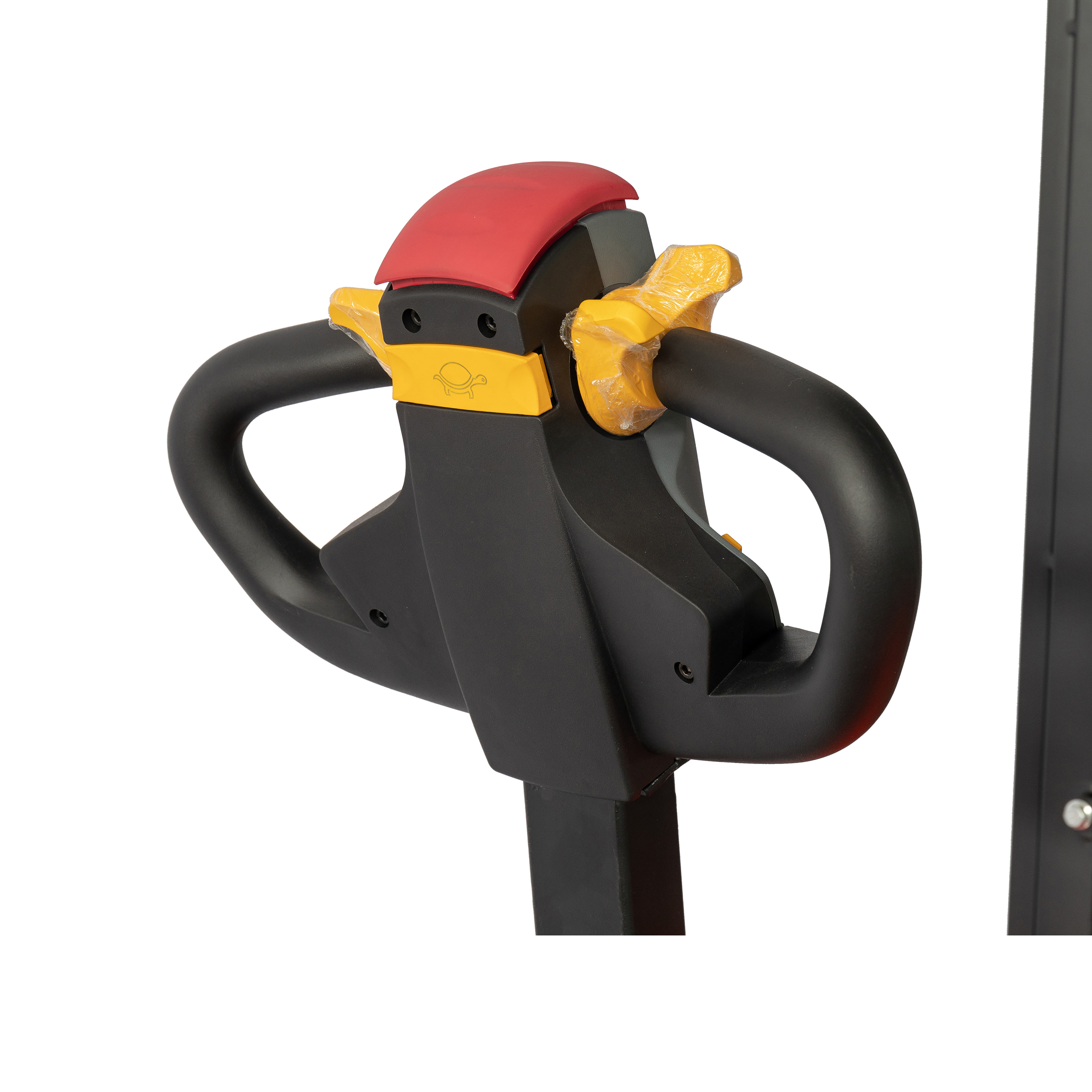

6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.

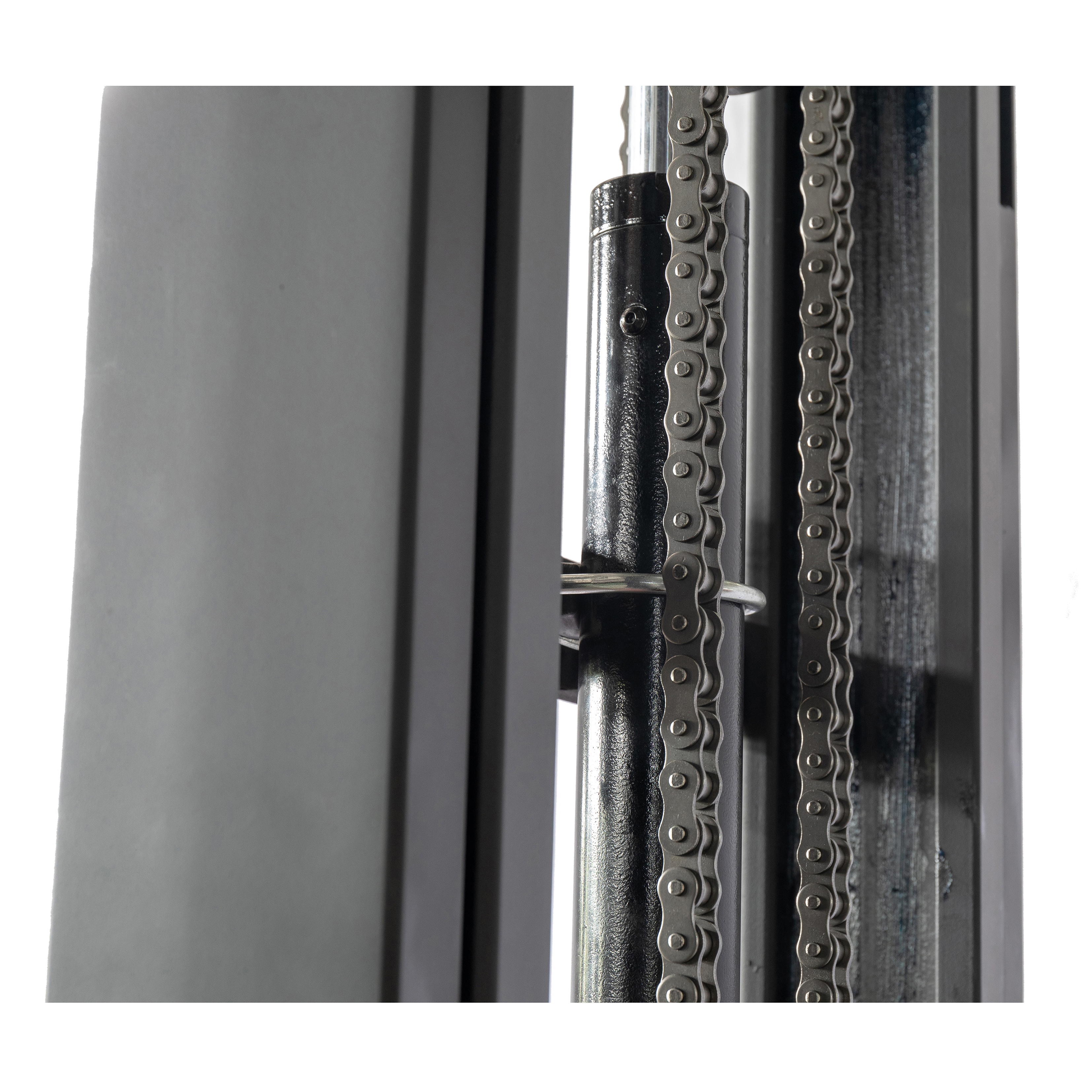

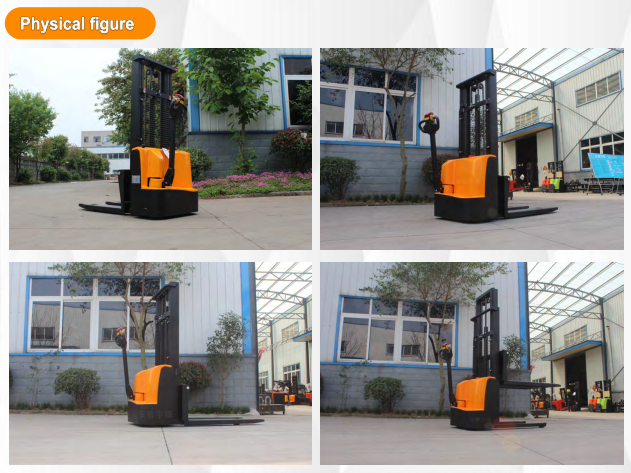

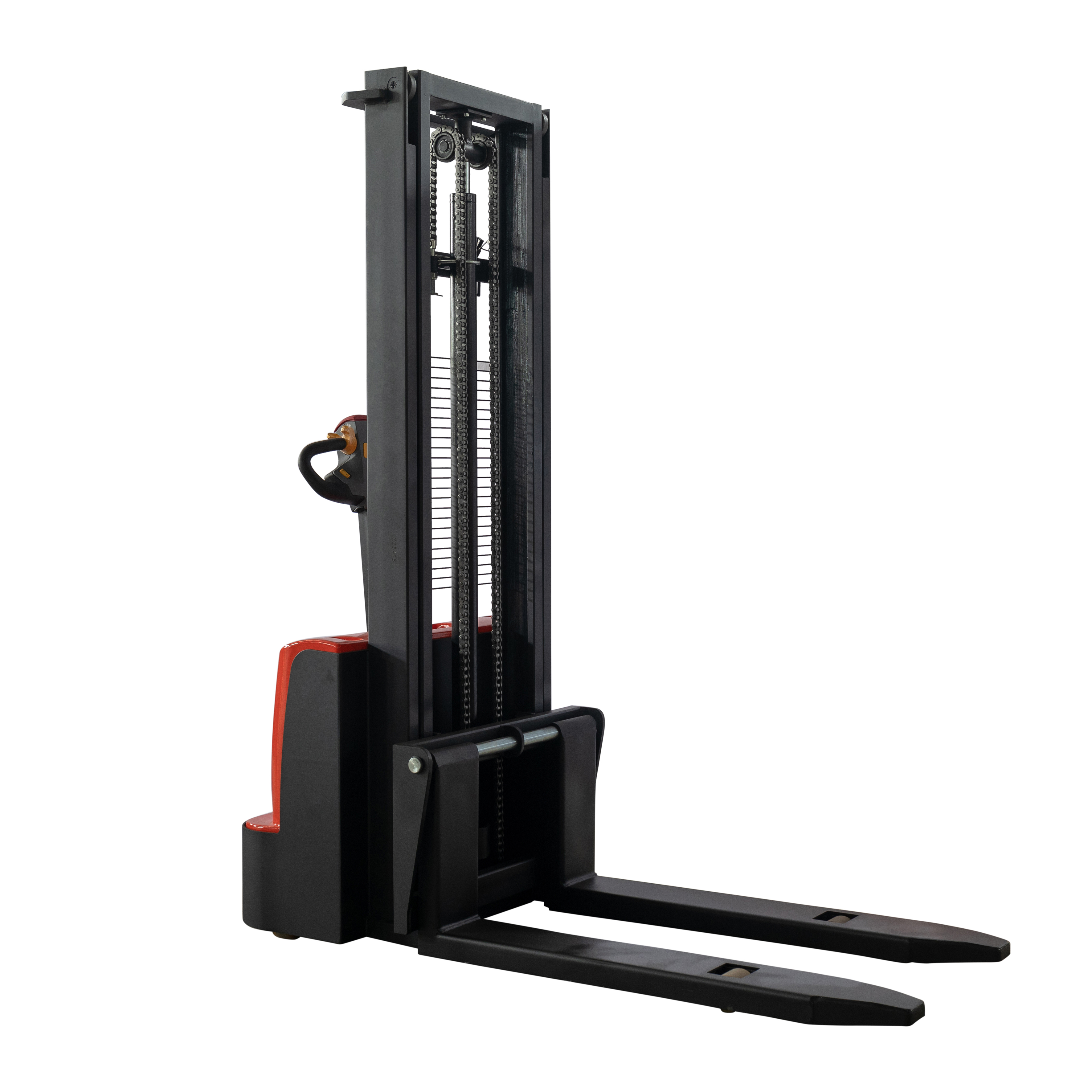

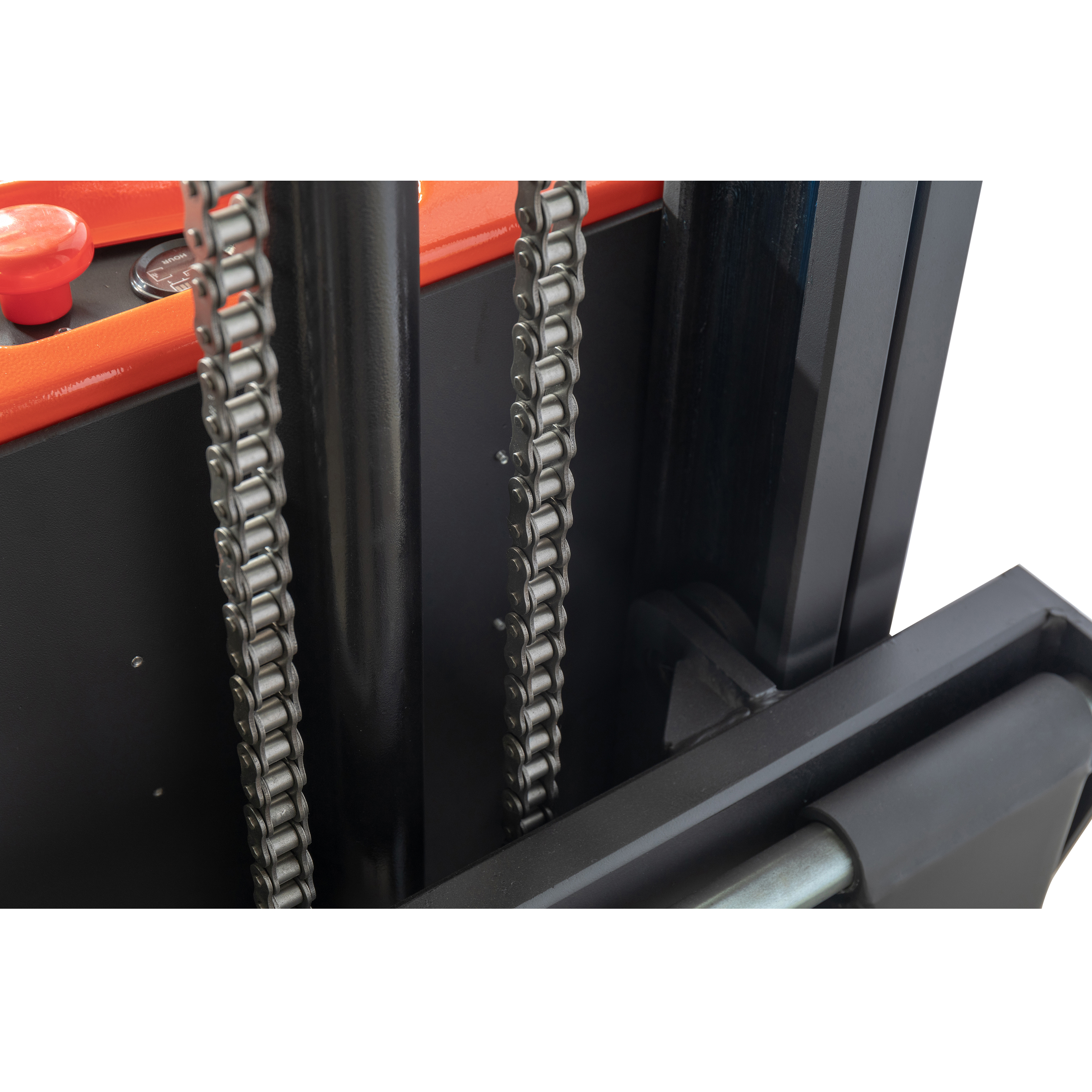

Detailed images

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

Packing&delivery

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

Certifications

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

Our service

Walkie Electric Pallet Stacker With PU Wheel Loading 1000kg 1500kg

FAQ

1. How to place an order?
A:Tell us your detail requirements by email or on Trademanager or Skype:efcc3288667 ,We will send you our offer in 24 hours.

If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.

2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.

3. Are you Factory?
A: Yes.

4. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.

5. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.

6. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.

7. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype, please send us

your purchase order,or you can ask us to send you a proforma invoice for your order.

8. How could I pay them?
A: We accept Western Union (for parts order, order value less than $2500); T/T(bank transfer,order value at least $2000); L/C

(Irrevocable LC at sight,order value at least $10000 )

9. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on your products! We provide OEM/ODM service.
